GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial

Chứng nhận
Trung Quốc Guangdong Jingchang Cable Industry Co., Ltd.  Chứng chỉ
Trung Quốc Guangdong Jingchang Cable Industry Co., Ltd.  Chứng chỉ
Khách hàng đánh giá
Chúng tôi rất hân hạnh được hợp tác với bạn.

—— -- John Smith

Chất lượng tốt Dịch vụ tốt!

—— —— Mohamed Rebai

Tôi rất hài lòng với dịch vụ của công ty này, tôi tin rằng công việc kinh doanh của họ sẽ ngày càng tốt hơn.

—— —— Ashot Matinyan

Tôi trò chuyện trực tuyến bây giờ

GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial

GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial
GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial

Hình ảnh lớn :  GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: OEM/ ODM/ YUEXIANKE
Chứng nhận: UL/ CE/ ETL/ ROHS/ ANATEL
Số mô hình: GYTW
Thanh toán:
Số lượng đặt hàng tối thiểu: 1000 mét
Giá bán: Negotiation
chi tiết đóng gói: 1000 mét
Thời gian giao hàng: 3-7 Ngày làm việc
Điều khoản thanh toán: L / C, D / A, D / P, T / T, Western Union, MoneyGram
Khả năng cung cấp: 100000 mét / ngày

GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial

Sự miêu tả
Mẫu số: Phòng tập thể dục Tăng cường thành viên:: Kim loại
Chất liệu ngoài:: PE Sử dụng:: Trên không
Ống lỏng:: Cáp Uni-Tube Băng dính nước:: Đúng
Kiểu:: Singlemode Đếm sợi:: 2-144 lõi

GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 2 - 48 Cores For Duct / Aerial



Product Description

  • GYXTW is an outdoor use optical fiber cable suitable for duct and aerial applications.
  • We supply GYXTW fiber optic cable from 2 fiber cores to 24 fiber cores.
  • Both single mode type and multimode types are available.
  • Fiber optic cable GYXTW, 2~12 fibers, jelly filled and fiber contained central loose tube, copolymer coated steel tape, two parallel steel wires 1.2mm, PE outer sheath, G652D SM fiber, detailed specification on your request.

Specification



Recommended laying methods Aerial
Allpicable fields Long distance communication and LAN
Properties Water proofing layer providing strong water resistance peformance
Steel tape with PE outer enhancing anti-crush and tensile property of cable

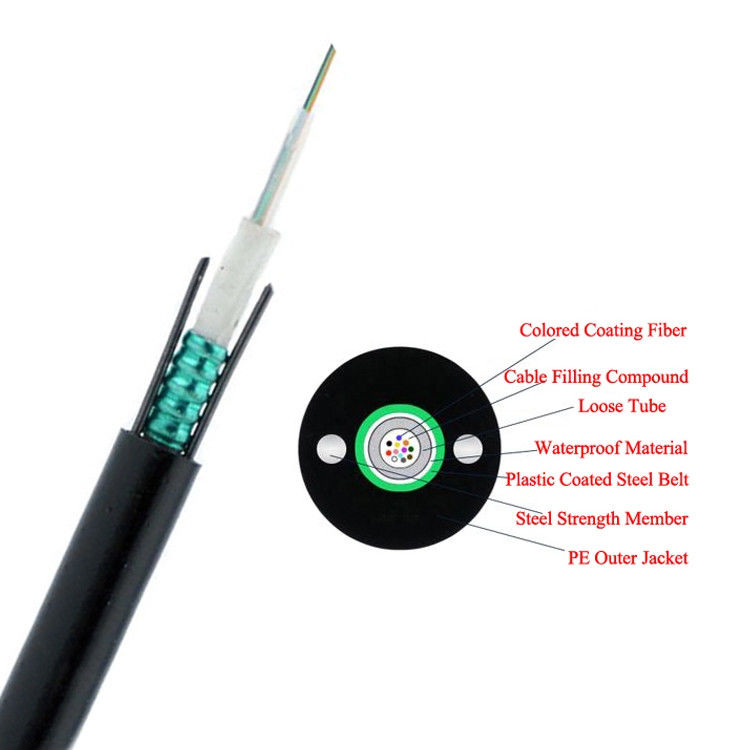

Structure characters Water proofing layer between the steel tape and cable core
Double coated PE corrugated steel tape under PE sheath
Parallel double steel wires as strengthen member

We can design oval cross section and non-metallic structure on

requirement,e.g:GYXTEW,GYFXTW,GYFXTEW etc.



Technicial Data



Fiber range   Cable weight (kg/km) Min.bending radius(mm) Allowable tension(N) Max.crus loading force(N/1000mm)
Cableouter diameter static dynamic short term long term short term long term
2-12 8.9 90 10times cable diameter 20times cable diameter 1500 600 1000 300
12-24 10.2 110



Features



  • Low dispersion and attenuation
  • Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
  • Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
  • With small cable diameter, light cable weight, easily to layOperating Temperature: -40 ~ +60 °C
